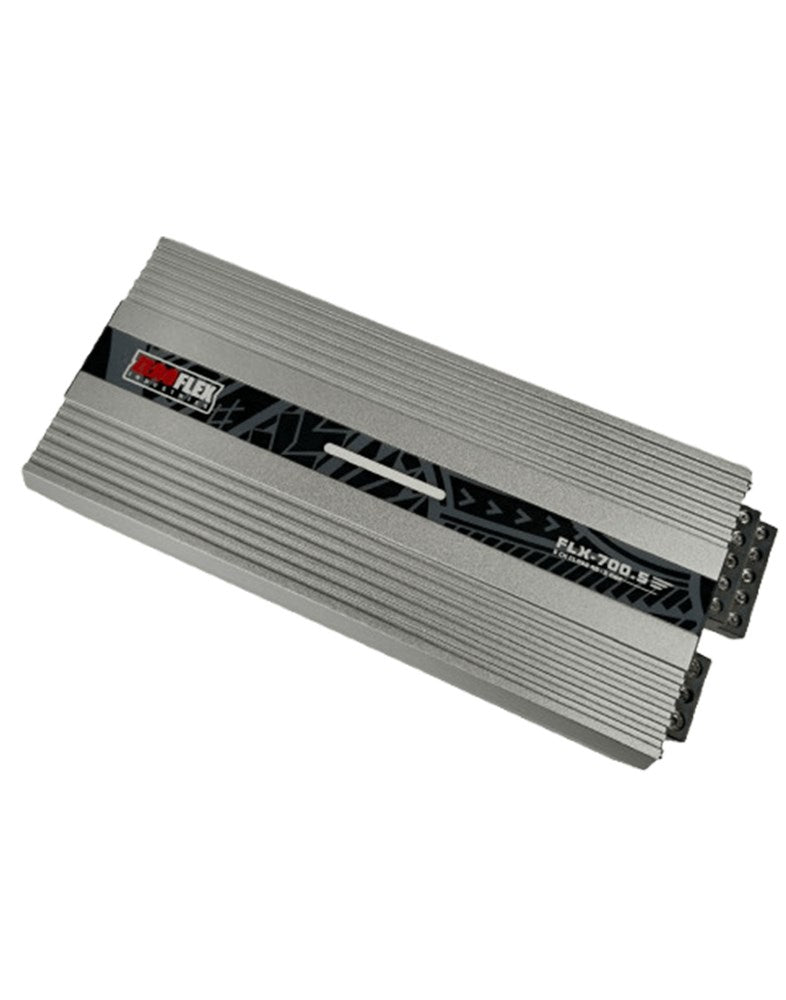

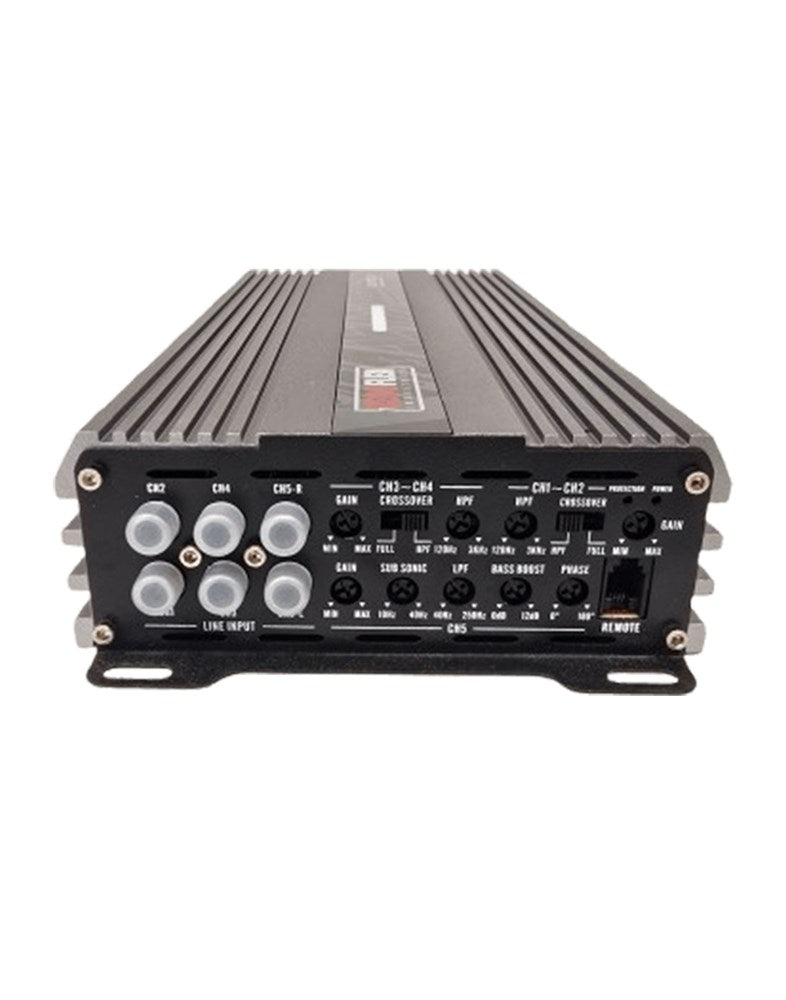

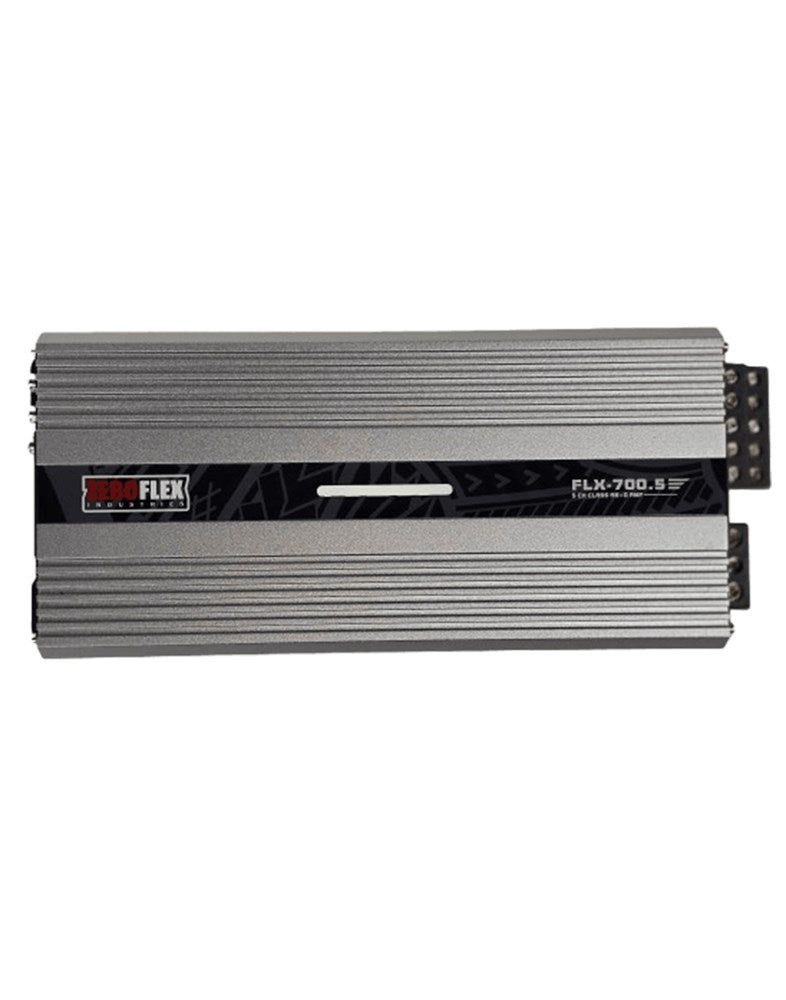

Zeroflex FLX700.5- 5 Channel Amplifier With Free Bass Controller

Upgrade your car audio system with the Zeroflex FLX700.5 5-Channel Amplifier, engineered to deliver powerful, clean, and reliable sound performance. Featuring a combination of Class AB and Class D technology, this amplifier efficiently powers your front and rear speakers while delivering dedicated high-output bass performance to your subwoofer.

Key Features

• 5-Channel Amplifier Design – Power four speakers and one subwoofer from a single amplifier for a complete audio system upgrade.
• High RMS Power Output – Delivers strong and consistent performance for both speakers and subwoofers.
• Class AB + Class D Technology – Combines high-quality sound reproduction with efficient subwoofer power delivery.
• Free Remote Bass Controller Included – Easily adjust subwoofer bass levels from the driver's seat for customized sound.
• Low Pass Filter (LPF) – Fine-tune subwoofer frequencies for cleaner and more accurate bass response.
• Bass Boost Function – Enhance low-frequency output for deeper and more impactful bass.
• Short Circuit Protection – Built-in protection circuitry helps safeguard the amplifier and connected components.
• SMD Component Design – Surface Mount Device technology improves reliability, performance, and thermal efficiency.

Specifications

• Brand: Zeroflex
• Model: FLX700.5
• Power Output
• 4 Ohm RMS Power:
  • 75W x 4 Channels + 350W x 1 Channel
• 2 Ohm RMS Power:
  • 100W x 4 Channels + 500W x 1 Channel
• Bridged RMS Power:
  • 200W x 2 Channels @ 4 Ohms
• Rated Voltage: 13.4V @ <0.2% THD

Audio Performance

• Frequency Response (Channels 1–4): 20Hz – 20kHz
• Frequency Response (Channel 5): 10Hz – 250Hz
• Signal-to-Noise Ratio: 90dB
• Input Sensitivity: 0.2V – 6V

Connectivity

• Input Terminal: 4 Gauge
• Output Terminal: 10 Gauge

Protection & Electrical

• Protection: Short Circuit Protection
• Fuse Rating: 80A
• Operating Voltage: 10V – 16V

Note: Manufacturers warranty is void if damaged due to failure in installation or power surge. Professional installation is required. For warranty, invoice/certificate from installer is mandatory.
